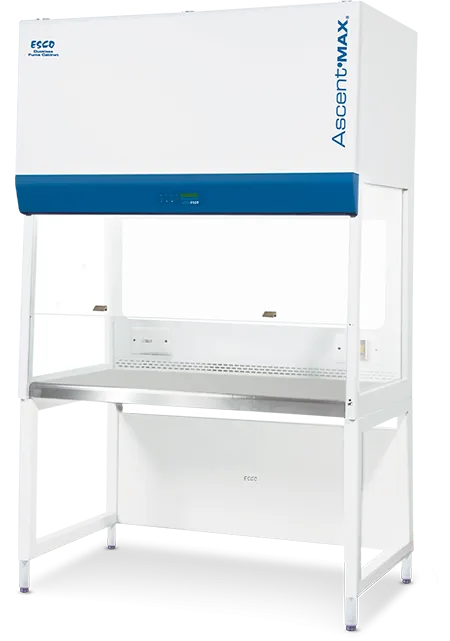

Ascent™ Max Ductless Fume Hood, D Series, Main Carbon Filter & Transparent Back Wall, Esco

Esco

SKU:N/A

£8,021.00

{price} OFF

25+ In Stock

Width

Drip cup provision

Width

Drip cup provision

Quantity

Guarantee Safe
Checkout

Secure_Checkout_Options_-_Appleton_Woods

Description

The Esco Ascent™ Max D Series ductless fume hood is the demonstration model within the Ascent™ Max range, designed for applications where visibility is a key requirement. It combines ductless carbon filtration with a transparent tempered glass back wall, making it well suited to teaching, training and demonstration environments where users need a clear view of the work area.

Designed as a demonstration ductless fume hood with a transparent tempered glass back wall.
Ideal for teaching laboratories, training spaces and supervised practical demonstrations.
Main Nanocarb™ activated carbon filter helps remove chemical fumes before clean air is returned to the laboratory.
Ductless configuration avoids the need for external extraction ductwork, supporting easier installation and relocation.
Provides operator and environmental protection through controlled airflow and carbon filtration.
Efficient perimeter clamping helps minimise filter leakage and allows easier filter replacement.
Permanently lubricated centrifugal fans are designed for low operating noise and reduced vibration.
Critical components are positioned outside the contaminated airstream to support easier servicing.
Optional VOC sensor provides an alarm indication when volatile organic compounds are detected in the exhaust.
Worktop options include stainless steel as standard, with phenolic resin or epoxy upgrades available for greater chemical resistance.
Available in multiple sizes, with PP drip-cup provision available on selected models.

Product Code	Product Description	Alt Code	Width	Drip cup provision
SA1118	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m	ADC-3D1	3ft	No
SA1119	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m	ADC-4D1	4ft	No
SA1120	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m	ADC-5D1	5ft	No
SA1121	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m	ADC-6D1	6ft	No
SA1122	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 3ft/0.9m with PP D...	ADC-3D1-PP	3ft	Yes
SA1123	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 4ft/1.2m with PP D...	ADC-4D1-PP	4ft	Yes
SA1124	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 5ft/1.5m with PP D...	ADC-5D1-PP	5ft	Yes
SA1125	Ascent™ Max Ductless Fume Hood with Transparent Back Wall, 6ft/1.8m with PP D...	ADC-6D1-PP	6ft	Yes

DOWNLOAD PRODUCT INFORMATION

Product Code	SA1118	SA1119	SA1120	SA1121	SA1122	SA1123	SA1124	SA1125
Width	3ft	4ft	5ft	6ft	3ft	4ft	5ft	6ft
Drip cup provision	No	No	No	No	Yes	Yes	Yes	Yes
Main filter type	Nanocarb™ activated carbon filter
Secondary / exhaust filter	None
Worktop material	Stainless steel, with phenolic resin or epoxy options
