Primostar 3, full kohler, integrated WiFi Axiocam 208 colour camera, FOV 22, 4x, 10x, 40x objectives

SKU: PK049
£4,692.00

10+ In Stock

  • Guarantee Safe
    Checkout

Secure_Checkout_Options_-_Appleton_Woods

Description

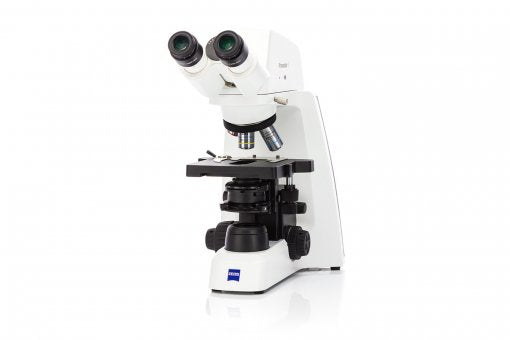

The robust transmitted light microscope for teaching and efficient laboratory work. Zeiss Primostar 3 microscopes are designed for brightfield applications; darkfield and phase contrast are also possible with the right slide and lenses. With two optional filters also polarization contrast.

The Fixed-Koehler versions of the Primostar 3 have a 20 mm field of view, four lens mounts and a 5V connection for additional mobile batteries.

The Full-Koehler variants have a 22 mm field of view, five lens mounts, a coded nosepiece, eco mode and light manager, which automatically loads the last set brightness when the lens is changed.

Features:

  • Transmitted light plug-in modules with 6V 30W halogen lamp and LED 3W white light, 5600K
  • 5-position objective turret, tilted backwards
  • Cross table 75x50 drive on the right and object holder for two object carriers with spring lever on the left
  • Binocular phototube 25°/22 (50:50) with integrated 8MP camera
  • Eyepieces 10x/22 Br. foc. with eyecups
  • Objectives iPlan-Achromat 4x, 10x, 40x
  • ABBE condenser 0.9 with slot
  • light manager
  • ECO mode
  • Color filter set blue, green, yellow
  • Halogen lamp 6V 30W (spare)
  • country-specific power cord
  • dust cover
  • 5 year guarantee

Camera Specs:

  • Sensor type: Sony CMOS color sensor with rolling shutter
  • Number of pixels: 3840 (H) x 2160 (V) = 8.3MP, Ultra HD (4K)
  • Selectable resolutions: 3840 x 2160 = Ultra HD (4K) and 1920 x 1080 = Full HD (1080p)
  • Pixel size: 1.85 µm x 1.85 µm (Ultra HD resolution)
  • Sensor size: 7.1 mm x 4.0 mm, equivalent to 1/2.1" (diagonal 8.15mm)
  • Spectral range: approx. 400 nm - 700 nm, IR filter stand-alone:
  • Image save format: tiff or jpg Video stream format: mp4
  • Live frame rates via HDMI: 30 fps @ 4K/1080p (also with HDR)
  • Live frame rates via software via Ethernet or USB3.0 (depending on hardware and software configuration), exposure time 1 ms: H x V frame rate 3840 x 2160 up to 15 fps (ZEN blue edition) 1920 x 1080 up to 27 fps (ZEN blue edition ) 1920 x 1080 up to 30 fps (Labscope)
  • Digitization: 8 bits/pixel
  • Exposure time: 0.06 msec to 1 sec
  • Interfaces: HDMI for the monitor USB 3.0 for USB hub, memory stick, Wi-Fi adapter or PC connection Ethernet (RJ45) for LAN connection
  • Optical interface: built-in adapter
  • Max. file size per image: .tiff up to: 24 MB (not dependent on image content) .jpg up to: 0.5 MB - 3.3 MB (depending on image content)
  • Passive cooling by aluminum cooling fins on the cover plate
  • Ambient conditions: +10° ... +40° Celsius, max. 75% relative humidity, non-condensing, free air circulation required
  • Supported OS for Labscope: Windows 7/10 x64 Prof./Ultimate and iOS v11 and above Supported Application Software: Labscope v3.2 (Winand iOS) and later and above
  • The camera is network-capable and can be used with the Zeiss iOS app and Labscope. The app is available as a free download from the Apple App Store. Unless otherwise specified by the distributor, iPad and WiFi routers are not available through ZEISS.

All microscopes can be customised, please contact our Microscopy Specialist, Microscopy Specialist, to find your perfect configuration!
